A Comparative Study of CNNs and Swin Transformers on Traffic Sign Classification For CS 7150

An Analysis of "Swin Transformer: Hierarchical Vision Transformer using Shifted Windows"

The Swin Transformer paper introduces a powerful and scalable vision architecture that extends the success of transformers to a wide range of computer vision tasks. Unlike standard Vision Transformers (ViT), which use global self-attention, Swin employs a hierarchical design with non-overlapping windows, making it more computationally efficient. The key innovation lies in the shifted window mechanism, which allows cross-window connections and improves information flow across local regions.

The architecture progresses through four stages, gradually reducing spatial dimensions via Patch Merging and increasing the number of channels—mirroring the design philosophy of CNNs. This allows the model to capture fine-grained features in earlier stages and more abstract representations in deeper layers.

The paper demonstrates strong results on benchmark datasets in image classification, object detection, and semantic segmentation, showing the Swin Transformer’s potential as a general-purpose backbone. Its modular nature and competitive performance suggest a promising alternative to traditional convolutional networks.

Figure 1: Comparison of hierarchical Swin Transformer vs. flat ViT.

Unlike ViT which applies global attention at a fixed scale, Swin Transformer processes images in a hierarchical fashion—starting with small patches and gradually merging them. This enables Swin to support not only classification but also detection and segmentation.

Figure 2: Shifted window self-attention across layers.

Swin Transformer performs local attention within windows in one layer, and then shifts the windows in the next. This allows information exchange between neighboring regions while keeping the computation efficient.

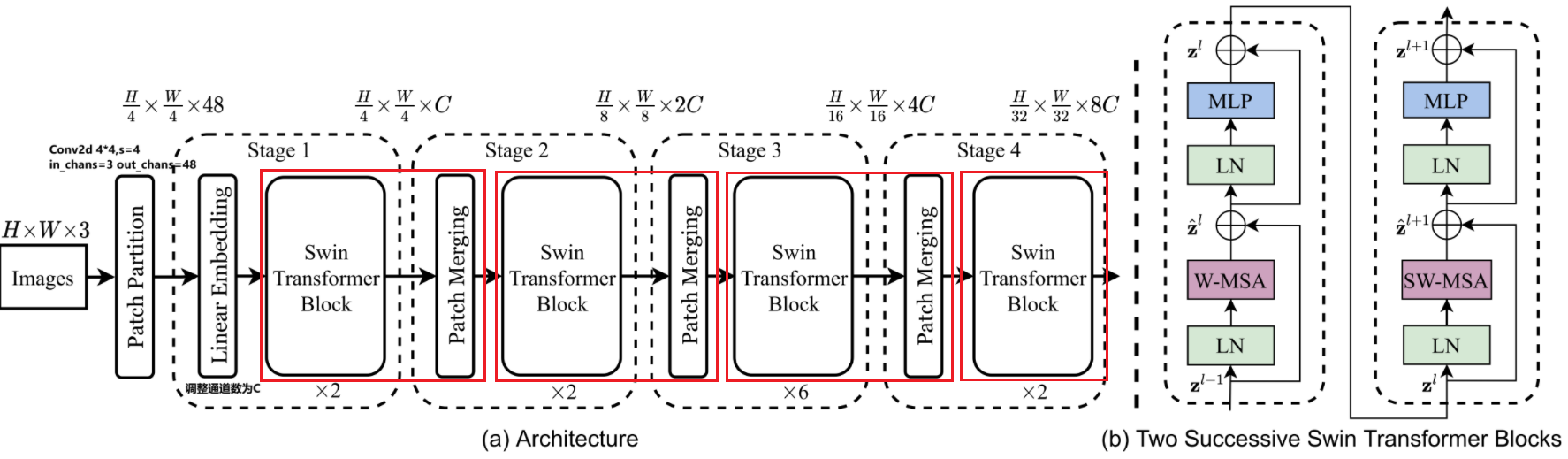

Figure 3: The overall architecture of the Swin Transformer.

The model adopts a hierarchical design with four stages in total. Except for the first stage, each subsequent stage begins with a Patch Merging layer that downsamples the input feature map, reducing its resolution. This allows the model to progressively enlarge the receptive field - similar to how CNNs operate - enabling it to capture increasingly global information.

At the beginning of the model, a Patch Partition operation is applied - this is equivalent to the Patch Embedding in ViT. The input image of size \( H \times W \times 3 \) is divided into non-overlapping patches of size \( 4 \times 4 \), producing \( \frac{H}{4} \times \frac{W}{4} \) patches, each with a flattened vector of dimension \( 4 \times 4 \times 3 = 48 \). Thus, the embedded feature sequence has shape:

\( \mathbf{X}_0 \in \mathbb{R}^{\frac{H}{4} \cdot \frac{W}{4} \times 48} \)

In the first stage, a Linear Embedding layer projects these 48-dimensional vectors into a hidden dimension \( C \), where:

\( \mathbf{X}_1 = \mathbf{X}_0 \cdot \mathbf{W}_{\text{embed}} \in \mathbb{R}^{\frac{H}{4} \cdot \frac{W}{4} \times C} \)

Each subsequent stage (except the first) starts with Patch Merging, which concatenates features from a 2×2 region and applies a linear projection:

\( \text{PatchMerging}(x) = \text{Linear}(\text{Concat}(x_{i,j}, x_{i,j+1}, x_{i+1,j}, x_{i+1,j+1})) \)

This reduces the resolution by a factor of 2 and doubles the channel dimension, producing a more abstract and compact representation for deeper stages.

Inside each stage, several Swin Transformer Blocks are applied. As shown in the diagram, each block contains:

• Layer Normalization before each major operation
• Window-based Multi-head Self-Attention (W-MSA) computing attention within non-overlapping windows
• Shifted Window Attention (SW-MSA) to enable cross-window connections
• Multilayer Perceptron (MLP) with two linear layers and a GELU activation

The W-MSA and SW-MSA operations can be formally described as:

\( \text{Attention}(Q, K, V) = \text{Softmax}\left( \frac{QK^\top}{\sqrt{d}} \right)V \)

where \( Q, K, V \) are linear projections of the input \( X \) within each window and \( d \) is the dimensionality of the keys.

Figure 4: Understanding the framework from a code perspective.

In the Swin Transformer architecture, Patch Merging is placed at the end of each stage. The input first goes through a series of Swin Transformer Blocks for feature extraction, followed by downsampling via Patch Merging. The final stage does not perform any further downsampling. Instead, its output is passed directly to a fully connected layer, where it is used to compute the loss against the target labels.

              # window_size=7
              # input_batch_image.shape=[128,3,224,224]
              class SwinTransformer(nn.Module):
                  def __init__(...):
                      super().__init__()
                      ...
                      # absolute position embedding
                      if self.ape:
                          self.absolute_pos_embed = nn.Parameter(torch.zeros(1, num_patches, embed_dim))

                      self.pos_drop = nn.Dropout(p=drop_rate)

                      # build layers
                      self.layers = nn.ModuleList()
                      for i_layer in range(self.num_layers):
                          layer = BasicLayer(...)
                          self.layers.append(layer)

                      self.norm = norm_layer(self.num_features)
                      self.avgpool = nn.AdaptiveAvgPool1d(1)
                      self.head = nn.Linear(self.num_features, num_classes) if num_classes > 0 else nn.Identity()

                  def forward_features(self, x):
                      x = self.patch_embed(x) # Patch Partition
                      if self.ape:
                          x = x + self.absolute_pos_embed
                      x = self.pos_drop(x)

                      for layer in self.layers:
                          x = layer(x)

                      x = self.norm(x)  # Batch_size Windows_num Channels
                      x = self.avgpool(x.transpose(1, 2))  # Batch_size Channels 1
                      x = torch.flatten(x, 1)
                      return x

                  def forward(self, x):
                      x = self.forward_features(x)
                      x = self.head(x) # self.head => Linear(in=Channels,out=Classification_num)
                      return x


Figure 5: The overall architecture of the CNNs.

We implemented a Convolutional Neural Network (CNN) to classify traffic signs into 43 categories using the GTSRB dataset. The input is a 32 * 32 RGB image passed through five convolutional stages. Each stage uses 3 * 3 filters, ReLU activation, batch normalization, and dropout (25%) to prevent overfitting. Max pooling is applied to reduce spatial dimensions, eventually down to 4 * 4.

After feature extraction, the output is flattened and passed through a fully connected layer with 128 units and 50% dropout. The final layer outputs a 43-dimensional vector, transformed into class probabilities using softmax.

The model was trained for 15 epochs with a batch size of 32. It combines strong feature extraction, dimensionality reduction, and regularization, making it well-suited for robust traffic sign recognition.

Dataset: GTSRB

The German Traffic Sign Recognition Benchmark (GTSRB) is a widely-used dataset for multi-class image classification, designed for developing and evaluating traffic sign recognition models. It contains over 50,000 images covering 43 traffic sign classes, with variations in scale, lighting, rotation, and occlusion—making it a challenging benchmark for real-world vision systems.

• Image count: 51,839
• Classes: 43 different traffic signs
• Image size: Varies, mostly resized to 32*32 or 64*64 in preprocessing
• Applications: Used in autonomous driving, traffic sign recognition, visual robustness testing

Accuracy Comparison

Loss Comparison

Download Our Trained Model

We provide the best-performing Swin Transformer model trained on the GTSRB dataset. If you'd like to run your own experiments or verify our results, you can download the model from the link below:

Download Swin - Tranformer Weight file (.pth) [with top 1 accuracy reaches 98.3 %]

After downloading, you can place the `.pth` file in Swin - Transformer code part at project folder /Swin - Transformer - main / output and load it using PyTorch for inference or further training.
